Diameter Paddle Gauge – Complete Guide, Specifications & Applications
Raj Engineers India is a reliable Diameter Paddle Gauge Manufacturer in Ahmedabad, offering precision-engineered gauges designed for quick and accurate internal diameter measurement. Paddle gauges are widely used in production environments where fast inspection and consistent results are essential.
These gauges are commonly used along with snap gauge for external measurement and keyway gauge for precision slot checking to ensure complete dimensional inspection in manufacturing processes.
Experience
Years of Experience
Team Members
Happy Clients

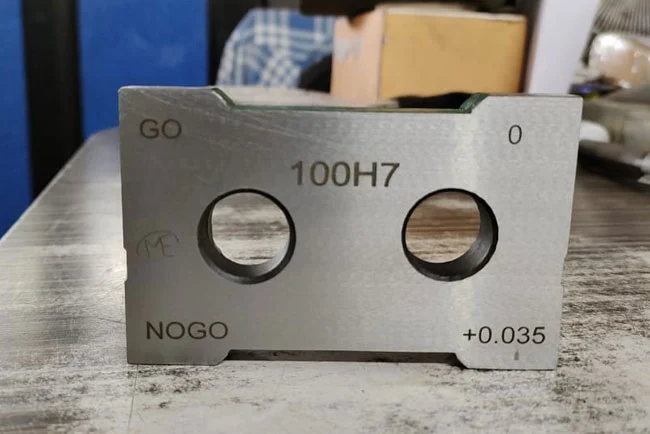

What is a Diameter Paddle Gauge?
A diameter paddle gauge is a precision measuring tool used to check internal diameters of components quickly and efficiently. It is specially designed for applications where conventional gauges may be difficult to use due to accessibility or speed requirements.
Paddle gauges are widely used in high volume production to maintain accuracy while reducing inspection time.
Other Names of Paddle Gauge
Diameter paddle gauges are also known as:
What diameter paddle gauge inspection delivers
Diameter Paddle Gauge Manufacturer in Ahmedabad & Gujarat
As a trusted Diameter Paddle Gauge Manufacturer in Ahmedabad, Raj Engineers India supplies high-quality gauges across Gujarat and India. Our gauges are widely used in industries such as:
Industries we serve
- Automotive manufacturing
- CNC machining units
- Textile machinery manufacturing
- Heavy engineering industries
Being based in Ahmedabad enables us to provide fast delivery and customized solutions to industrial clients.
Types of Paddle Gauges
Standard Paddle Gauge
Used for general internal diameter inspection.
Custom Paddle Gauge
Designed for specific component dimensions and applications.
Special Purpose Paddle Gauge
Developed for unique industrial inspection requirements.
Technical Specifications of Paddle Gauge
| Parameter | Details |
|---|---|
| Material | High-grade tool steel |
| Hardness | 58–62 HRC |
| Accuracy | As per industry standards |
| Surface Finish | Precision ground |
| Size Range | Custom sizes available |
| Tolerance | As per application requirement |
Features of Paddle Gauges
High accuracy in internal measurement
Quick and easy inspection
Compact and user-friendly design
High durability and wear resistance
Suitable for mass production use
Consistent performance
Benefits of Using Paddle Gauges
Fast Inspection
Ideal for high-speed production environments.
Improved Productivity
Reduces inspection time and increases efficiency.
Accurate Measurement
Ensures proper internal diameter control.
Reduced Errors
Minimizes human error during measurement.
Cost Effective
Helps reduce rejection and rework.
Applications of Paddle Gauges
Paddle gauges are widely used in:
They are often used along with snap gauge for external measurement and plain plug gauge for hole inspection to ensure complete dimensional accuracy.

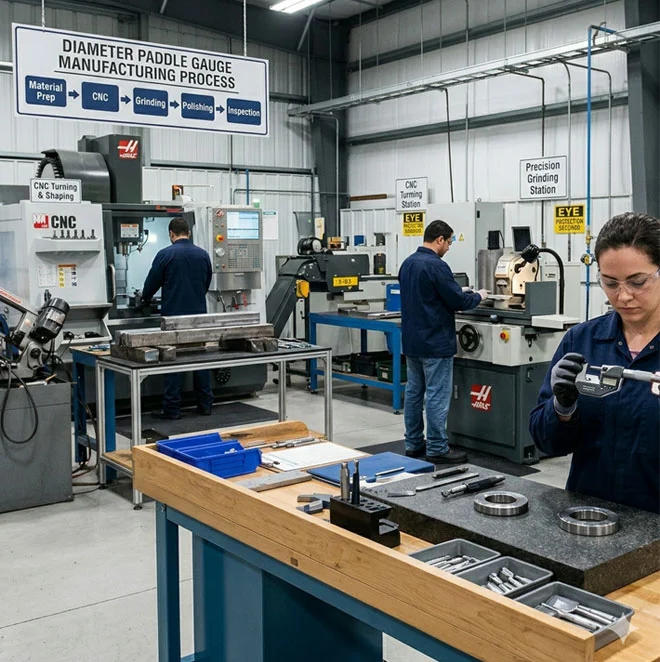

Manufacturing Process
Selection of high-quality raw material
High-grade material is selected for strength, hardenability, and stable finished dimensions.
Precision machining
Critical surfaces are machined to close limits before heat treatment and finishing.
Heat treatment for strength
Controlled heat treatment targets the required hardness for wear resistance and long service life.
Grinding and finishing
Precision grinding and finishing achieve accurate gauging geometry and surface quality.
Final inspection and testing
Each paddle gauge is verified dimensionally and functionally before dispatch.
Quality Assurance
Why Choose Raj Engineers India?
Our expertise also includes gauges like snap gauge for external inspection and keyway gauge for precision slot measurement.
Custom Paddle Gauge Solutions
We offer customized paddle gauges based on:
Cities We Serve Across India
We supply precision gauges to industries across major cities in India, ensuring timely delivery and consistent quality.
Frequently Asked Questions – Paddle Gauge
It is used to measure internal diameters quickly and accurately.
They are used in automotive, CNC machining and engineering industries.
Yes, they can be designed based on specific dimensions and requirements.
High-grade hardened tool steel is commonly used.
They reduce inspection time and ensure consistent measurement.
Yes, supply is available across Ahmedabad, Gujarat, and major industrial cities in India.
Conclusion
Diameter paddle gauges are essential tools for fast and accurate internal measurement in manufacturing processes. High quality gauges help improve productivity, maintain consistency and ensure reliable performance in industrial applications.
